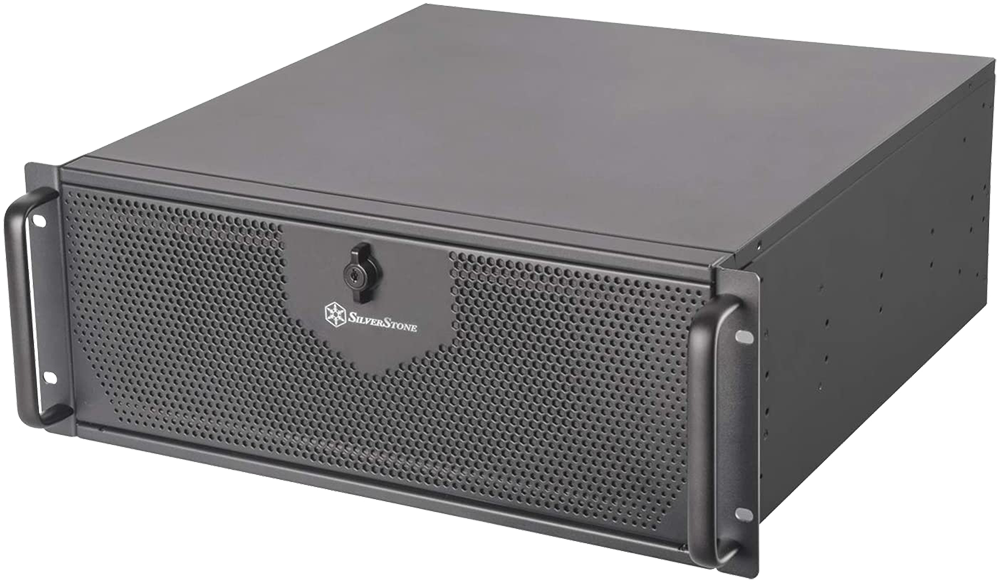

RM42-502 Rack Pro Chassis - Default

RM42-502 Rack Pro Chassis - Default

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Supports up to SSI-EEB motherboards
  • Front panel features anti-theft lock design providing additional security
  • Supports 240mm liquid cooling radiators
  • Two 5.25" drive bays directly compatible with 3.5" or 2.5" drives
  • Includes one USB Type-C interface
  • Includes sliding rail mounting holes for quick rail installation
  • Can be placed upright or horizontal
Description


Product Specifications
Model No.
SST-RM42-502B (Black)
Material
Steel
Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Drive Bay
External
  • 5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2)
Internal
  • 2.5" x 1
Cooling System
Front
  • 120mm x 2 (120mm x 1 fan included)
Rear
  • 80mm x 2 (80mm x 1 fan included)
Internal
  • --
Radiator support
Front
  • 120mm x 2 / 240mm x 1
Expansion Slot
7
Front I/O Port
USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1
LED indicator
Power status x 1, HDD activity x 1
Power Supply
PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant
Net Weight
9.9kg
Dimension
430mm (W) x 176mm (H) x 468mm (D)
Chassis form factor
4U

Expansion card
Length w/ expansion card retainer: 337mm
Length w/o expansion card retainer: 426mm
Width w/ GPU holder: 116mm
Width w/o GPU holder: 154mm
Limitation of CPU cooler
w/ GPU holder: 130mm
w/o GPU holder: 148mm
Extra
Side switch for chassis intrusion security
